Configuring WinWarbler for CW Operation

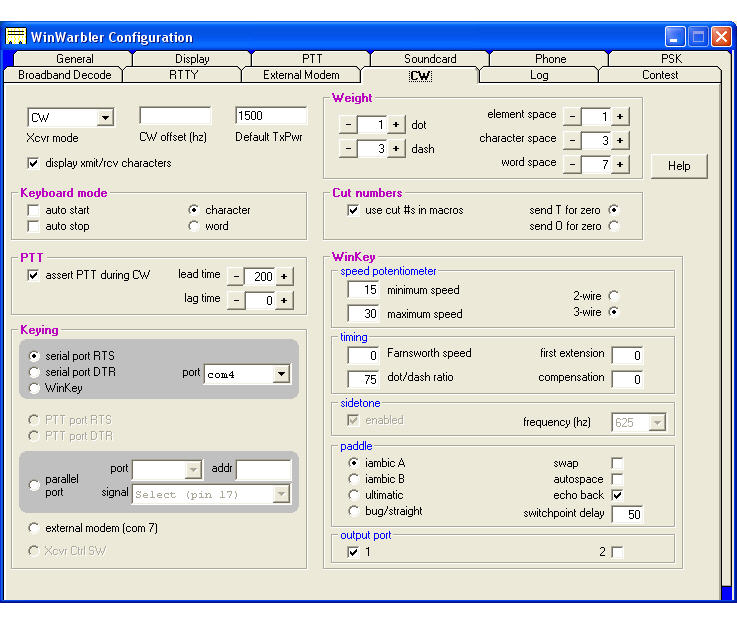

  1. on the Configuration window's CW tab

    1. set the Xcvr mode selector to CW

    2. set the CW offset (hz) to 0 (or leave the box empty)

    3. set the Default TxPwr to the power (in watts) you'll use when operating in CW

      a.check the display xmit/rcv characters box

    4. in the Keyboard mode panel

      • uncheck the auto start and auto stop boxes (explore these later)

      • select character (if you are using an amplifier, word is more appropriate)

    5. in the PTT panel

      • check the assert PTT during CW box

      • if you aren't using an amplifier, set the lead time and lag time to 0; if you are using an amplifier, set these as necessary to prevent hot switching

    6. set the Keying panel as required by the CW connection

      • if using a serial port signal, specify either RTS or DTR and select the correct serial port; the generated CW's timing will be more stable if you use the Windows Control Panel to set your computer's Power Plan to High Performance

      • if using a parallel port signal, select the signal and select the parallel port; the generated CW's timing will be more stable if you use the Windows Control Panel to set your computer's Power Plan to High Performance

      • if using a WinKey circuit to generate CW, follow these instructions

      • if using Xcvr Ctrl SW (Commander) with a transceiver that accepts text via CAT command for transmission in CW, automatic switching between reception and transmission may also require configuring your transceiver for CW Break-In operation

    7. in the Weight panel

      • set dot to 1

      • set dash to 3

      • set element space to 1

      • set character space to 3

      • set word space to 7

    8. in the Cut numbers panel, check the use cut #s in macros box if you want number transmitted by macros to be sent in abbreviated form (e.g. N instead of 9)

      http://www.dxlabsuite.com/Wiki/Graphics/WinWarbler/ConfigCW.jpg

  2. on the Main window,

    1. set the Operating Mode panel to CW

    2. in the CW transmit panel

      • check the PTT box

      • uncheck the tunebox

Other CW options
